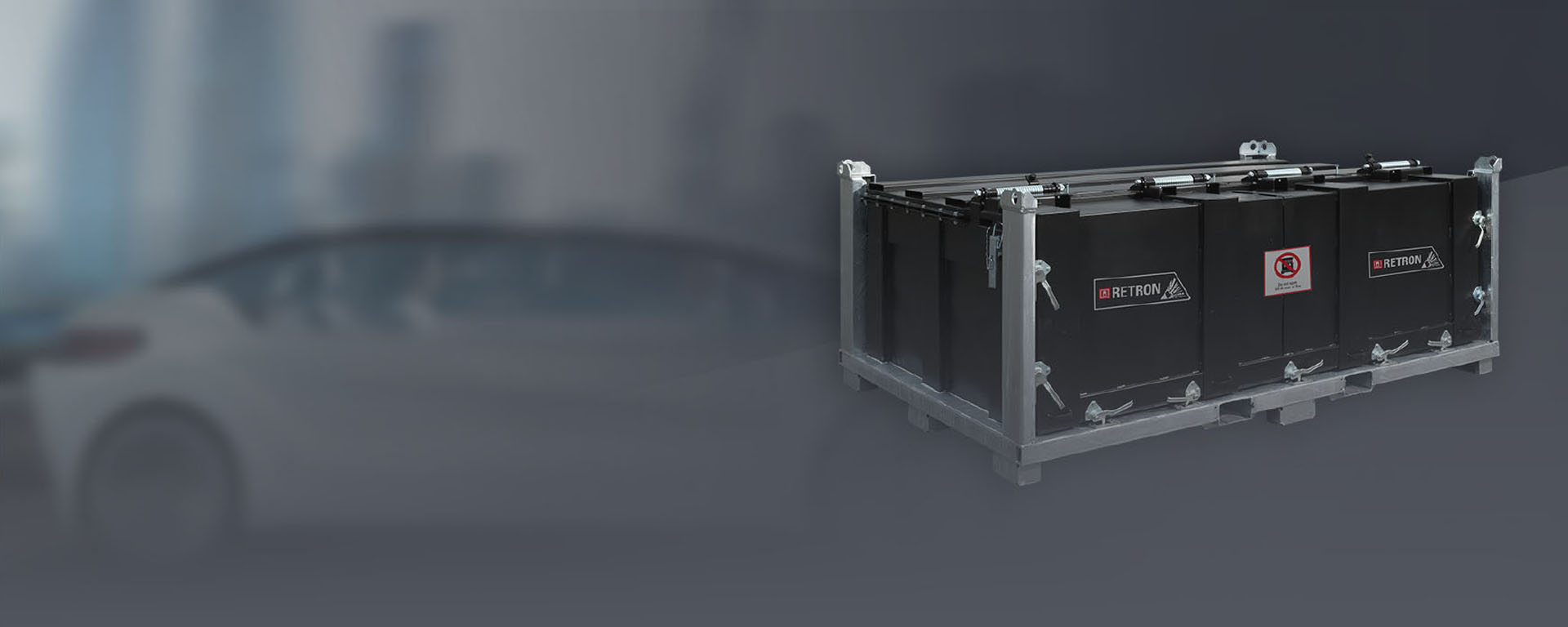

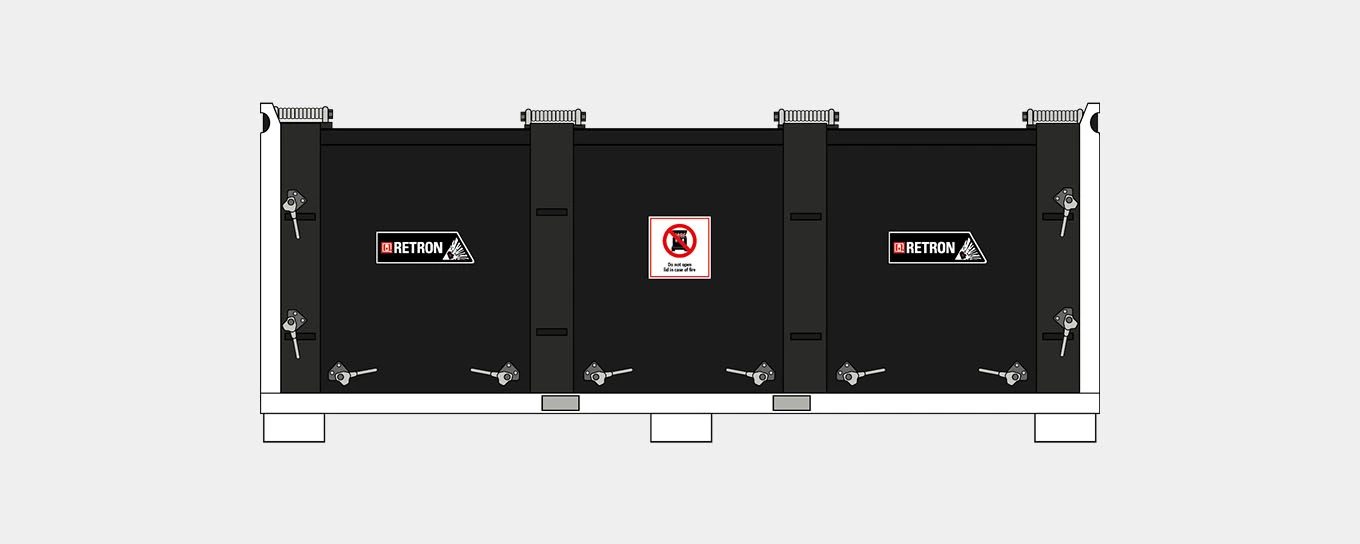

Container for lithium-ion batteries RETRON 4000
The largest example of our container family for the safe storage of e-car lithium-ion batteries.
Safe storage and transport of your e-car battery

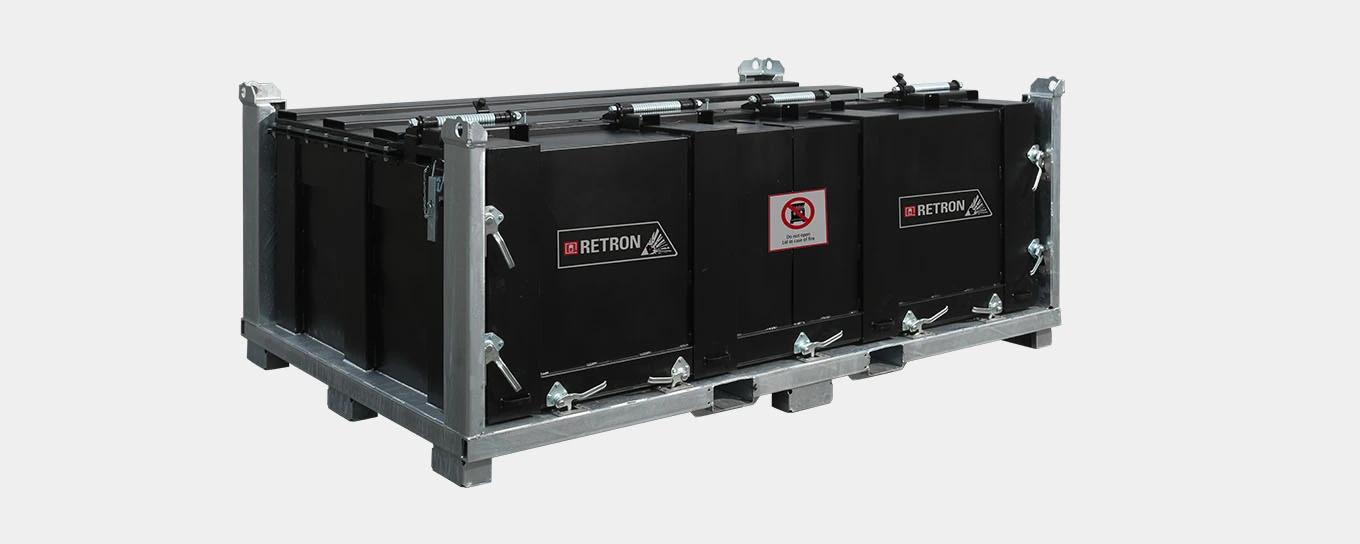

The currently largest container of the RETRON system is the RETRON 4000. In terms of design, the steel container is almost identical to the RETRON 3000. The only difference is the size. In the RETRON 4000, lithium-ion batteries with a payload of up to 1,000 kg find a safe place. These are installed in electric cars or electric forklifts, for example. The container can be stacked and craned and can be lifted with a pallet truck. Of course, it has the unique insulation and is equipped with the RETRON fire protection cushions.
Intended use
- Lithium-ion batteries
Technical data
- Tare weight: 1,76 t
- Max. gross weight: 2,89 t
- Dimensions: 3,060 W x 2,100 D x 1,230 H mm
- Length incl. extension: 3,070 mm
- Height with open lid: 2,300 mm
- Interior dimensions: Usable interior space without tray: 2,710 W x 1,830 D x 775 H mm

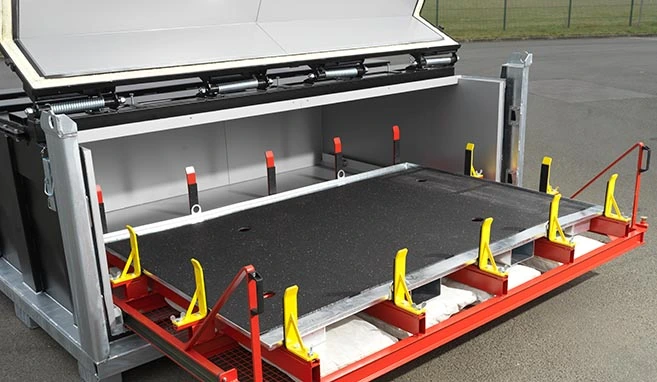

- Usable interior with tray: 2,400 W x 1,700 D x 570 H mm
- Usable volume: 3,900 liters
- Material: S235JR galvanized and powder coatedtet
Advantages of RETRON 4000
- In case of damage, there is no formation of flames and no leakage of projectiles.
- The outer casing has perfect thermal insulation, and the temperature on the outside of the container remains below 100 °C - for 3 days.

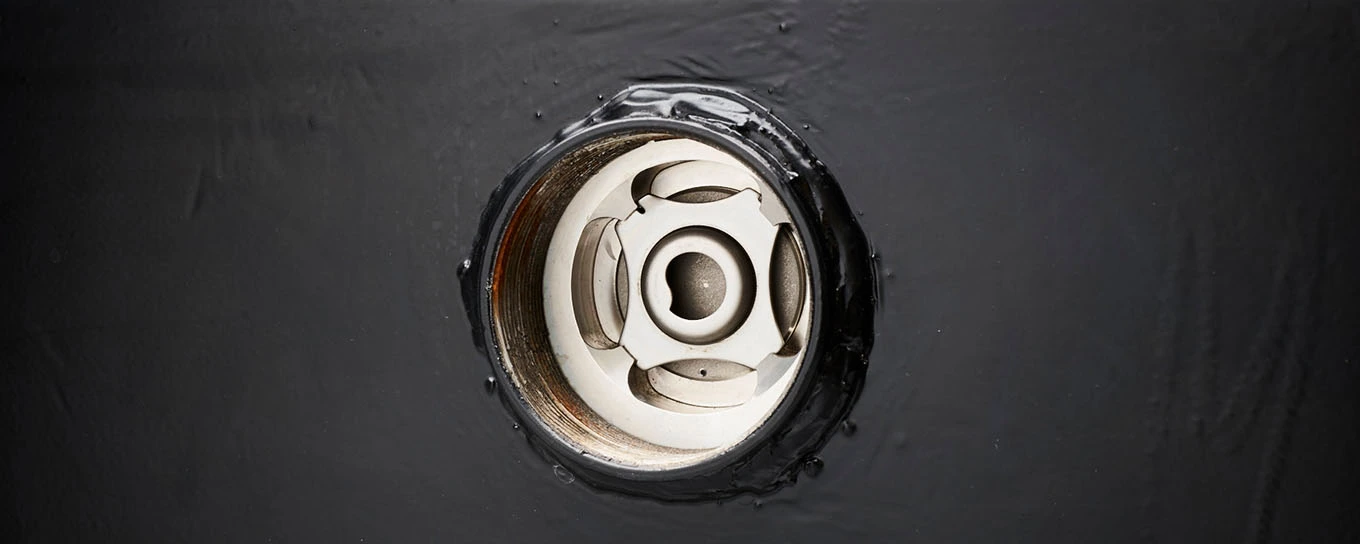

- All box variants have tested overpressure valves, through which the dangerous gases escape via defined openings.
This is what makes our containers for lithium-ion batteries so special
Smart features and highest safety class
We offer you secure solutions for the logistics and disposal of your e-car batteries.
Store heavy lithium-ion batteries from e-cars, forklifts & co. really safely
With the RETRON 4000, you can store and transport various lithium-ion batteries such as those from e-cars, e-buses or forklifts really safely.
The small version of our RETRON 4000
The RETRON 3000 is the slightly smaller version of the RETRON 4000 - and therefore also the ideal containment vessel for the lithium batteries of your electric vehicles.
RETRON 3000
E-Mobility: Fire protection concept and battery containment for lithium-ion batteries
Our largest containment RETRON 4000 with an extremely generous volume of 3,900 liters provides you with sufficient space for the safe storage of your e-car battery. Our specialists will also create an individual fire protection concept for you that meets all legal requirements in the handling your e-car batteries.
We support you with the transport of your e-car batteries
The RETRON 4000 guarantees safe transport of your e-car batteries and has all legal requirements and certifications. In addition our exclusive network within the REMONDIS Group allows you to transport lithium-ion batteries in accordance with ADR, regardless of the condition of your e-car battery.
The RETRON 4000 for safe handling of lithium-ion batteries of electric vehicles.
Your way to the optimal logistics and disposal solution for lithium-ion batteries
Versatile industries in the electrical world of the future
From trade to large-scale industry, from private households to municipalities - we offer the right container solution for your lithium-ion batteries for every sector.
For the safe handling of lithium-ion batteries
We offer the safe handling and environmentally friendly disposal and recycling of lithium-ion batteries.
Discover the entire RETRON container family
